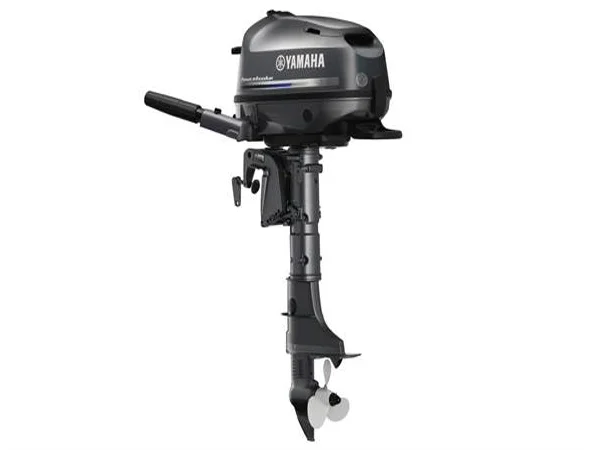

2018 Yamaha F6 Portable Tiller F6SMHA Outboard Motor
$855.00
Description
You can hit the water with confidence because to the F6’s power and dependability, which are also easy to store and operate.
Improved Beginning: Easy-to-grip starter knobs with integrated decompression devices are a feature of manual-start variants.
The Ideal Blend: small, light, and fuel-efficient.
Qualities
Lightweight, Portable Power: These 139cc OHV single-cylinder four-stroke powerhouses weigh as little as 60 pounds and have a CDI ignition system, a crankshaft that is ideally balanced, a long-span mounting system, a labyrinth exhaust, and many other characteristics for silent, smooth power. For added convenience and portability, they even feature integrated carrying handles.
Maximum Efficiency: These outboards have a 3-star C.A.R.B. emissions grade because the carburetor and its setting are factory-selected for maximum fuel efficiency. Easy, safer starts are further enhanced by automated decompression, integrated auxiliary priming, and start-in-gear avoidance.
Convenient Control: With a huge twist-grip throttle that is dampened and dynamically balanced, 180-degree steering, and a large F-N-R shift handle, control is crucial.
Dependable Performance: An integrated 1.1-liter transparent fuel tank allows you switchable access to an external tank for increased range. These outboards’ built-in gasoline strainer and tilting, water-resistant fuel filling lid enhance their dependability and ease of use.
Simple Storage: When storing or transporting the engine to and from the water, this Yamaha-only innovation offers comfort. It guarantees that the engine will start easily the first time out and permits the engine to be stored on either side or on the front grip without worrying about oil leaks.
Smooth Starts: Before the carburetor in the cowling, a tiny auxiliary prime pump is attached to the fuel pipe. Even after extended storage, the engine may start smoothly by guaranteeing that fuel reaches the carburetor.
Reducing Engine Wear: For an extended engine life, a pressured oiling system reduces engine wear.
Adaptable Performance: These outboards can operate in a variety of conditions thanks to a 3-step shallow water drive system and a 5-step trim adjustment. A wider range of propeller diameters and a splined propeller shaft provide you with performance that is manageable and simple to use.
Alternator Output: 6 Amp (optional: requires charging kit)
|
Bore & Stroke: 62 x 46 mm (2.44 x 1.81 in.)
|
Compression Ratio: 8.9:1
|
Cooling: Raw water, Thermostatic Control
|
Degree of Trim/Tilt: 5 positions / 69 deg.
|
Dimensions |
Displacement: 139 cc (8.5 ci)
|
Dry Weight: 27 kg (59 lb.)
|
Engine |
Engine Type: Four-stroke 1-cylinder
|
Exhaust: Above propeller
|
Fuel & Lubrication
|
Fuel Delivery: Carburetor
|
Gear Ratio: 13/27 (2.08:1)
|
Gear Shift: F/N/R
|
Ignition: CDI |
Induction System: OHV (overhead valve)
|
Lubrication: Wet sump
|
Oil Capacity: 0.6 L
|
Recommended Fuel: Unleaded Gasoline (Minimum Pump Octane 87)
|
Recommended Oil: Yamalube 4-M FC-W 10W-30 or 20W-40
|
RPM Range: 4,500-5,500
|
Shaft Length: 15 in.
|
Starting: Manual
|
Alternator |
6 Amp (optional: requires charging kit)
|
Bore x Stroke |
62 x 46 mm (2.44 x 1.81 in.)
|
Cooling |
Raw water, Thermostatic Control
|
Dimensions | |
Displacement | 139 cc (8.5 ci) |
Engine | |
Engine Type |
Four-stroke 1-cylinder
|
Fuel Induction |
OHV (overhead valve)
|
Full Throttle Operating Range |
4,500-5,500 rpm
|
Gear Ratio / Shift |
13/27 (2.08:1) / F/N/R
|
General | |
Shaft Length | 15 in. |
Starting | Manual |
Weight | 27 kg (59 lb.) |
WHAT’S IN THE BOX ?
1 X Outboard Motor
1 X Outboard Tiller Handle
1 X Fuel Tank
1 X Quick Connect Fuel Line tilt switch
1 x Teleflex SL3 Throttle control Top or side Mount + Free Installation Universal Cables
1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type
1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.
1 X Trim limiter
3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil
1 X Stainless Outboard Anti-Theft
1 X Book Owner’s Manual Guide from manufacturer
1 X Ebook Installation Guide & And how to take care of the engine properly.
3 X Cable Protection System Length 800mm
