Mercury 4 HP 4MH Outboard Motor 2024
$725.50
Description

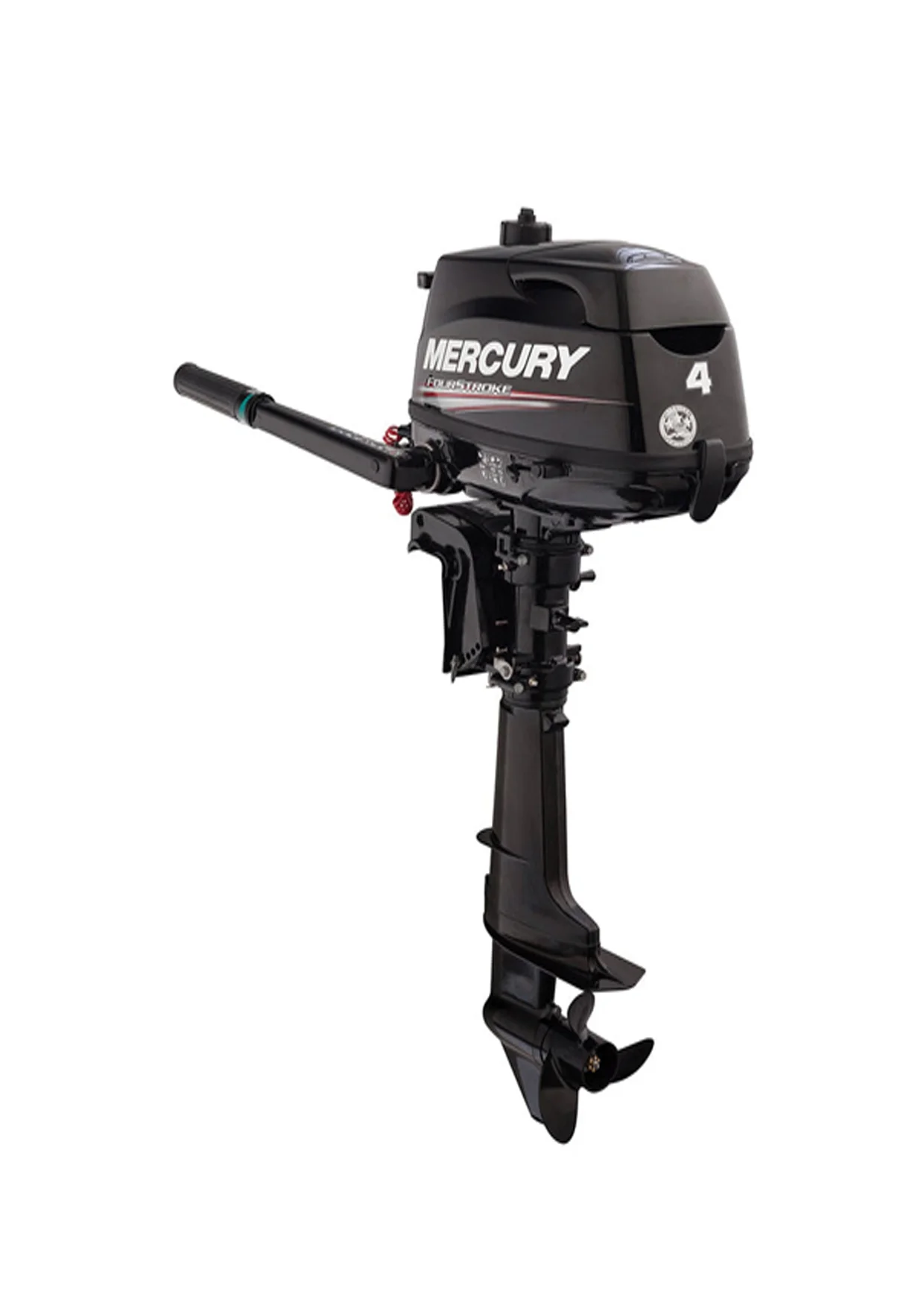

The Mercury 4hp outboard engine models are ideal for sailboat auxiliary power, small fishing boats, and tiny inflatables. Compact and lightweight, the Mercury 4 HP outboard engine model #4MH has a short 15-inch shaft, tiller steering, manual start, and full forward-neutral-reverse gears with twist-grip throttle. For true mobility, Mercury 4 HP models also have an integrated 1-liter fuel tank. It is quick and simple to add an additional fuel tank and line because the external tank connection is standard.
Other descriptions
Spark Advance Digital CD Ignition that is Small and Lightweight
Superior Marine Alloy Structure
Housing for a Stainless Steel Water Pump
Water Passages Coated in Zinc
Approved for Use in Saltwater
Anodes of sacrificial zinc
Adjustable steering tension control, forward-mounted gear shift selector, twist-grip throttle with tension control, and forward-neutral-reverse gear shift
Integrated Water Cooling Thermostat with Carry Handle
Drive for Shallow Water; Six Trim Positions
Quiet Through-Hub Exhaust 1.15 L (.30 gallons) with propeller Integrated Start-In-Gear Protection for the Fuel Tank
Safety Lanyard Stop Switch with Low Oil Pressure Warning Indicator and ESG Over-Rev Protection
Owner’s Guide: Three-Year Warranty for Mercury Marine
| ALTERNATOR |
Optional 12V 50W 4A (installation required)
|
| BORE AND STROKE | 2.32 x 1.77 |
| COOLING SYSTEM |
Water-cooled w/thermostat
|
| COUNTRY OF MANUFACTURE | Japan |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 7.5/123 |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| FUEL TANK / FUEL LINE |
0.3 US Gallon (1.15 liter) internal tank with external connector
|
| FUEL TYPE |
87 Octane (up to 10% ethanol content)
|
| FULL THROTTLE RPM RANGE | 4500-5500 |
| GEAR RATIO | 2.15:1 |
| GEAR SHIFT |
Forward-Neutral-Reverse (forward mounted shift lever)
|
| HORSEPOWER | 4hp |
| IGNITION SYSTEM | CDI |
| INDUCTION SCAVENGING | OHV |
| LUBRICATION |
Pressurized wet sump
|
| MANUFACTURER | Mercury |
| MODEL | 1F04201KK |
| MODEL YEAR | 2024 |
| OIL CAPACITY |
15 fl. Oz. (450 ml)
|
| OIL TYPE |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
|
| PROPELLER |
7.7″ Diameter X 7.0″ Pitch 3-Blade Aluminum
|
| SALTWATER RATED | Yes |
| SHAFT LENGTH | 15″ (Short) |
| SKU | 4MH-24 |
| STARTING | Manual |
| STEERING | Tiller |
| TRIM & TILT | Manual |
| VALVES PER CYLINDER | 2 |
| WEIGHT | 55.0 lb |
Inside the box
Fuel Tank Integrated (0.3 gal)
Owner’s Guide
Three-Year Mercury Warranty
Propeller made of aluminum
Tool Kit for Mercury 4-Stroke Oil
