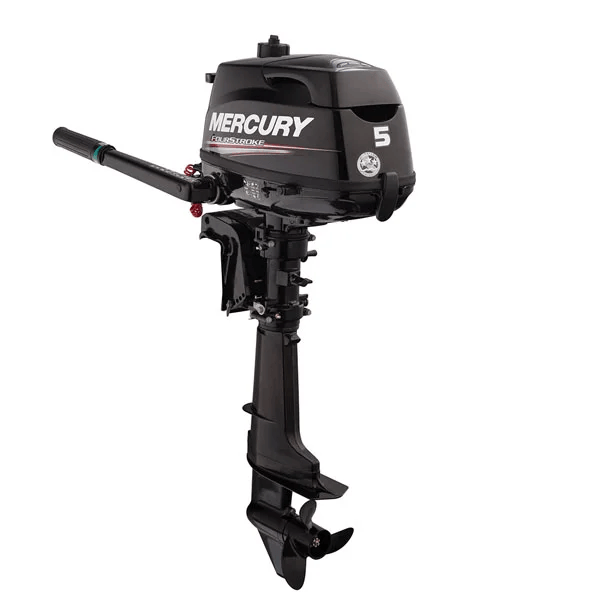

Mercury 5 HP 5MXLH Outboard Motor 2020
$725.95
Description
In addition to having a larger carburetor and propeller for improved performance and tiller steering, the 5 hp has many characteristics with the 4 hp. The 59-pound Mercury 5-hp engine has a manual start, exceptional fuel efficiency, and renowned dependability. The 5MXLH variant has a 25-inch longer shaft and an integrated gasoline tank for ultimate grab-and-go portability. The conventional external tank connector allows for the optional addition of an external gasoline tank or fuel line. The Mercury Marine 3-year warranty is included with this model.
Other descriptions
Spark Advance Digital CD Ignition that is Small and Lightweight
Superior Marine Alloy Structure
Housing for a Stainless Steel Water Pump
Water Passages Coated in Zinc
Approved for Use in Saltwater
Anodes of sacrificial zinc
Adjustable steering tension control, forward-mounted gear shift selector, twist-grip throttle with tension control, and forward-neutral-reverse gear shift
Integrated Water Cooling Thermostat with Carry Handle
Drive for Shallow Water; Six Trim Positions
Quiet Through-Hub Exhaust 1.15 L (.30 gallons) with propeller Integrated Start-In-Gear Protection for the Fuel Tank
Safety Lanyard Stop Switch with Low Oil Pressure Warning Indicator and ESG Over-Rev Protection
Owner’s Guide: Three-Year Warranty for Mercury Marine
| ALTERNATOR |
Optional 12V 50W 4A (installation required)
|
| BORE AND STROKE |
59 x 45 mm (2.32 x 1.77 inches)
|
| COOLING SYSTEM |
Water-Cooled, Thermostatically Controlled
|
| COUNTRY OF MANUFACTURE | Japan |
| CYLINDER(S) | 1 |
| DISPLACEMENT |
123 cc (7.5 cubic inches)
|
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| FUEL TANK / FUEL LINE |
0.3 US Gallon (1.15 liter)
|
| FUEL TYPE |
87 Octane (up to 10% ethanol content)
|
| FULL THROTTLE RPM RANGE | 4500-5500 |
| GEAR RATIO | 2.15:1 |
| GEAR SHIFT |
Forward-Neutral-Reverse (forward mounted shift lever)
|
| HORSEPOWER | 5hp |
| IGNITION SYSTEM |
Digital CD Ignition w/Electronic Spark Advance
|
| INDUCTION SCAVENGING | OHV |
| LUBRICATION |
Trochoid Pump
|
| MANUFACTURER | Mercury |
| MODEL | 5MXLH |
| MODEL YEAR | 2020 |
| OIL CAPACITY |
15 fl. Oz. (450 ml)
|
| OIL TYPE |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
|
| PROPELLER |
7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum
|
| SALTWATER RATED | Yes |
| SHAFT LENGTH |
25″ (Extra Long)
|
| SKU | 5MXLH-20 |
| STARTING | Manual |
| STEERING | Tiller |
| TRIM & TILT | Manual |
| VALVES PER CYLINDER | 2 |
| WEIGHT | 59.0 lb |
Inside the box
Fuel Tank Integrated (0.3 gal)
Owner’s Guide
Three-Year Mercury Warranty
Propeller made of aluminum
Tool Kit for Mercury 3-Stroke Oil
