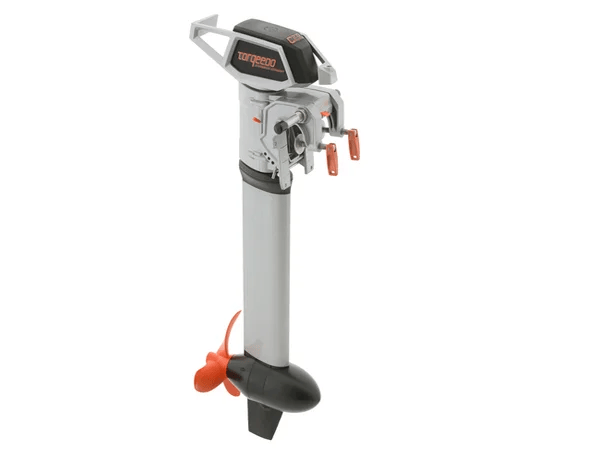

Torqeedo Cruise 4.0R Electric Outboard, Long Shaft, Remote Steering

Description

The Torqeedo Cruise models deliver up to twice the range from the same battery supply compared to other popular electric motors with high-tech features like GPS-based range calculation, up-to-the-minute accurate battery status and speed calculations, and the ability to work with cool accessories like Torqeedo’s smartphone app, TorqTrac. This is because they use a highly efficient rare earth magnet torque motor, electronics, and gear package.

A solid aluminium lower assembly offers better defence against debris, fishing lines, rust, and impact damage. The Cruise 4.0 produces thrust from a 9.9-hp combustion outboard and propelling power from an 8-hp engine.

Key Features

Compatible with standard steering systems: Models with remote steering are made to be connected to the light-duty steering system from SeaStar Solutions (separately offered).

GPS onboard computer: When paired with the Power 26-104 lithium battery, all models feature a GPS onboard computer and a tiller display that shows the speed, input power, and precise battery condition and remaining range in real time.

Submersible Waterproof Rating: IP67-compliant housing and all plug connections

Rugged construction: Extremely sturdy construction with a polymer plain bearing that doesn’t require lubrication, which guards against debris damage and is low maintenance and wear-resistant.

Battery: External (sold separately)

Equivalent Gas Outboard: 8hp propulsive power; 9.9hp thrust

Gearing: F-R continuously variable

Input Power in Watts: 4,000W

Max. Propeller Speed: 1,300rpm

Propulsive Power in Watts: 2,240W

Shaft Length: 29 11/16 inches

Static Thrust in Pounds: 189lb.

Steering Type: Remote, compatible with SeaStar Solutions light-duty steering systems

Trim: Manual, 4-step

Volts: 48V

Warranty: Two years limited

Weight: 37.5lb.

Operating Range – Cruise 4.0 with two Power 26-104 Batteries or four 12V AGM Batteries (48V) totaling 200Ah

In the box

• Cruise 4.0R, Complete motor with pylon, propeller, shaft and transom mount (with guide tube for remote steering), connection cables for cable set
• Remote throttle control with integrated display connection cables and attachment material
• Link arm and small parts for connecting the remote steering
• Magnetic Kill Switch
• Cable set with main switch, fuse and bridging cable (1 piece for Cruise 2.0 R/T, 3 pieces for Cruise 4.0 R/T)
• M8 screw to lock the steering
• Operating manual
• Service manual
• 5 meter data cable
