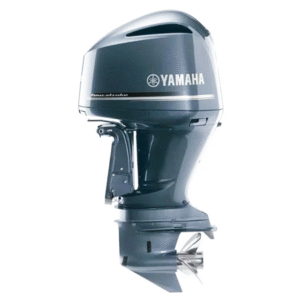

Yamaha F200 3.3L Offshore XCA Outboard Motor 2017

Description

For individuals that require exceptional off-shore performance.

Yamaha’s renowned V6 3.3L four-stroke engine paved the way for modern offshore power. They introduced a number of advancements that significantly increased top-end speed, acceleration, and low- and mid-range torque when they first got on the water. This invention was so groundbreaking that it won both an Editor’s Choice Award from MotorBoating Magazine and a BoatingWeek Innovation Award.

Yamaha F200 3.3L Offshore XCA Outboard Motor 2017

Performance/Power

Four-Stroke V6 Outboard Narrow 60° 3.3L Block Design with Mechanical Remote Control and Variable Camshaft Timing
Precision Long Track Induction System Multiple Fuel Injection Points
Six Separate Fuel Injectors
Each cylinder has four large radius valves.
Elevated Intake Valve Lift
In-BankTM Double Overhead Camshafts Exhaust Pressure Reduction System

Durability and Reliability

Electronic Single Throttle Valve for TCI Microcomputer (65mm)
Sacrificial Anodes for the Direct Drive System
Forged Pistons
Direct Ignition Water Separator/Water Cooled Regulator
SST Drive, Prop, Shift Shafts, 5-Step Anti-Corrosion Paint Process, Top Mounted Electrical High Output Alternator, SST Steering Tube Convenience/Control

Power Trim & Tilt Command Link® System Freshwater Flush Counter Rotation “LF” Model Yamaha Diagnostic System
Single Belt Drive System with Multi-Charge Monitoring

Other Descriptions

The year 2017

Yamaha Marine is the manufacturer.

The F200 3.3L Offshore model

Trim Name: XCA

Four Stroke Generic Type (Primary)

The engine

Engine Type: DOHC 24-Valve 60° V6

Engine Power (VF200LA): 200 horsepower at 5500 rpm

44 Amp is the alternator’s output (27 Amp is the battery charge).

Primary Gear Ratio (30:15) 2.00:1

204.6 ci of displacement (3352 cc)

Cleaning Wet Sump

System of Ignition: TCI Microcomputer

Induction Fuel System: EFI/VCT/DOHC

Yamalube® 4M is the recommended oil type (see owner’s handbook).

Fuel Type: Regular Unleaded (Minimum Pump Octane 89) (Recommended)

Type of Fuel (Suggested Filtration): Yamaha 10-Micron External Fuel/Water Separating Filter

Capabilities

4.7L or 4.5L of oil capacity with or without a filter

Plug for Sparks

Plug for Spark LFR6A-11-00-000

Range

Take note Range of Throttle RPM: 5000–6000

Measurements

Shaft Length: X = 25

3.70 in. (94 mm) bore

3.17 in. (80 mm) stroke

Weights

Dry Weight: 608 lb (276 kg)

Qualities

C.A.R.B. Features: 3 Star Rating

Mounting Centers Noted: 28.6

Qualities Degree of Trim: -3° to +16°; Degree of Tilt: TBD

Ratio of Compression 9.9:1

Propeller-Based Exhaust

Water Cooling and Thermostatic Regulation

Note the Forward, Neutral, and Reverse gear shifts.

Maximum steering angle: 32° in either direction from the center

Take note Blend Limit for Ethanol: 10% Maximum

Design of Intake Single Throttle Valve

Electric Starter T with PTT

Guarantee

Guarantee 3-Year Government, 3-Year Pleasure, and 1-Year Commercial
