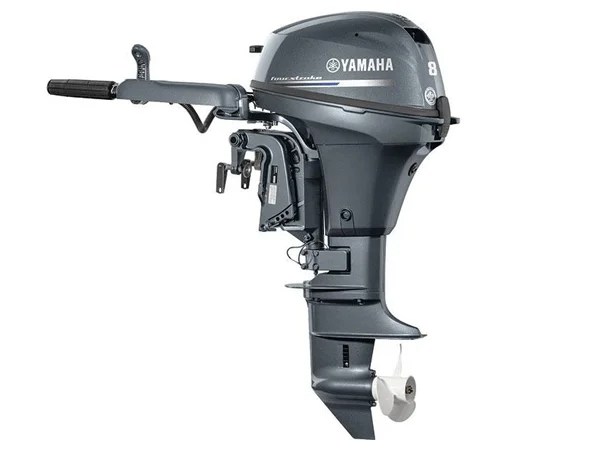

Yamaha F8 F8LMHB Outboard Motor 2017

Description

For people who desire portability, performance, and power

Even if the sun has just risen, your day started hours ago when you turned on your reliable Yamaha portable. During duck season, you might be hopping to the cuddy on a tender, pushing a sailboat till the wind picks up, or skimming the marsh in a jon boat. These agile, lightweight, and effective portables are ready to go wherever the day takes you. These 1- or 2-cylinder dynamos offer significant performance in streamlined designs and come in a range of horsepower from the F20 to the F2.5, including the revised F8 with 7.5 percent higher displacement.

 Yamaha F8 F8LMHB Outboard Motor 2017

Long Span Mounting System, Four Stroke Engine Design, Optimized Intake Manifold, Oil Separator, and Streamlined Gearcase for SOHC Labyrinth Exhaust
Dynamic Equilibrium California Ultra Low Emissions (C.A.R.B.) Engine Warning System Function with a 3-Star Rating
Engine Temperature Control Using Thermostatic
Wet Lubrication of the Sump
Five-Step Procedure for Anti-Corrosion Paint
Driveshaft, Prop, Shift, and Steering Tube Stainless Steel CDI Microcomputer

Other Descriptions

The year 2017

Yamaha Marine is the manufacturer.

F8 is the model name.

Trim Name: F8LMHB

Four Stroke Generic Type (Primary)

The engine

Type 2 Cylinder Engine

8 horsepower at 5500 rpm

6A is the alternator’s output.

12.0 ci of displacement (197 cc)

Primary Gear Ratio (27:13) 2.08:1

Cleaning Wet Sump

Induction Fuel Type: SOHC

System of Ignition: CDI Microcomputer

Yamalube® 4M is the recommended oil type (see owner’s handbook).

Fuel Type: Regular Unleaded (Minimum Pump Octane 87) (Recommended)

Type of Fuel (Suggested Filtration): Yamaha Mini 10-Micron External Fuel/Water Separating Filter

Capabilities

0.8L of oil (0.85 quarts) capacities

Plug for Sparks

The BR6HS-1000-000 spark plug

Range

Take note Range of Throttle RPM: 5000-6000

Measurements

Shaft Length: L=20

2.20 in. (56 mm) bore

1.57 in. (40 mm) stroke

Weights

F8LMHB’s dry weight is 39 kg (89 lbs).

Specific Weight: 4 lbs

Qualities

Manual for the Starter

Mounting Centers Noted: 28.6

Take note Blend Limit for Ethanol: 10% Maximum

Maximum steering angle: 45° in either direction from the center

Qualities Degree of Trim: 4 places; Degree of Tilt: 78°

Note the Forward, Neutral, and Reverse gear shifts.

Water Cooling and Thermostatic Regulation

C.A.R.B. Features: 3 Star Rating

Propeller-Based Exhaust

Carburetor Design Intake

8.8:1 Compression Ratio

Guarantee

Three-year limited warranty Pleasure Boat: Limited Commercial, One Year
