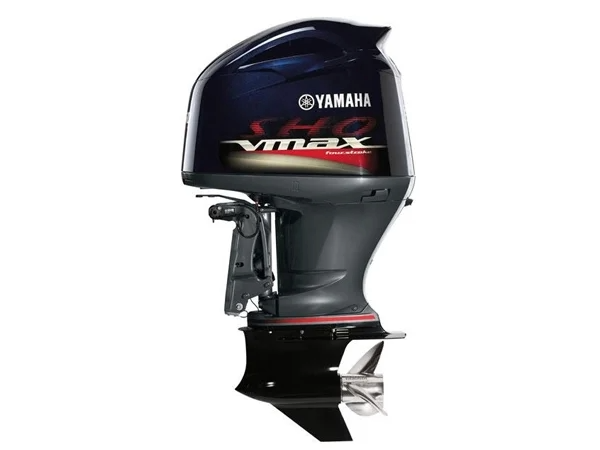

Yamaha VF200 LA VMAX SHO Outboard Motor 2017

Description

Bass fishermen promoted the two-stroke for years, forgoing power and fuel efficiency in favor of performance. That is, until Yamaha unveiled the first four-stroke bass boat with a 4.2L Super High Output. All the benefits of a two-stroke engine are combined into a clean-burning, fuel-efficient four-stroke with the V MAX SHO®. On the tournament circuit, professional anglers have always desired this caliber of performance. Additionally, two strokes have been officially put on notice.

Yamaha VF200 LA VMAX SHO Outboard Motor 2017

Extremely High 60° V6 Output Design
Four-stroke V6 Outboard Plasma-Fused Sleeveless Cylinders with Mechanical Control
Comshaft Timing Variability
Electronic Multi-Point Precision Fuel Injection Long Track Induction System Ignition Knock Sensor Four large radius valves per cylinder
Elevated Intake Valve Lift
Compact, lightweight design of the Double Overhead Camshafts In-BankTM Exhaust Pressure Reduction System

Other Descriptions

The year 2017

Yamaha Marine is the manufacturer.

VF200 is the model name.

LA is the trim name.

Four Stroke Generic Type (Primary)

The engine

Type of Engine V6 (60º)

200 HP engine power at 5500 RPM

50 Amp alternator (output) (46 AMP at 1000 rpm)

4.2L of displacement (254 ci)

Primary Gear Ratio (21:12) 1.75:1

Cleaning Wet Sump

Induction Fuel Type: DOHC Fuel Injection VCT

System of Ignition: TCI Microcomputer

Yamalube® 4-M is the recommended oil type (see owner’s manual).

Fuel Type: Regular Unleaded (Minimum Pump Octane 87) (Recommended)

Fuel Type: Yamaha 10 Micron Fuel/Water Separating Filter (Suggested Filtration)

Maximum steering angle: 35° in either direction from the center

Capabilities

6.7L (7.1 quarts) of oil capacity with filter

Plug for Sparks

Plug for Spark LFR6A-11-00-000

Range

Take note Range of Full Throttle RPM: 5000–6000 rpm

Measurements

Shaft Length: 20 inches

3.78 in. (96 mm) bore

3.78 in. (96 mm) stroke

Weights

Dry Weight: 229 kg/505 lb

Qualities

Mounting Centers Noted: 28.6

Note the Forward, Neutral, and Reverse gear shifts.

Qualities Degree of Trim: -4° to +16°; Degree of Tilt: 66°

Design of Intake Single Throttle Valve

Take note Blend Limit for Ethanol: 10% Maximum

Water Cooling and Thermostatic Regulation

Electric Starter with PTT

C.A.R.B. Features: 3 Star Rating

Propeller-Based Exhaust

10.3:1 Compression Ratio

Guarantee

Guarantee Three years of pleasure, three years of government, and one year of commerce
